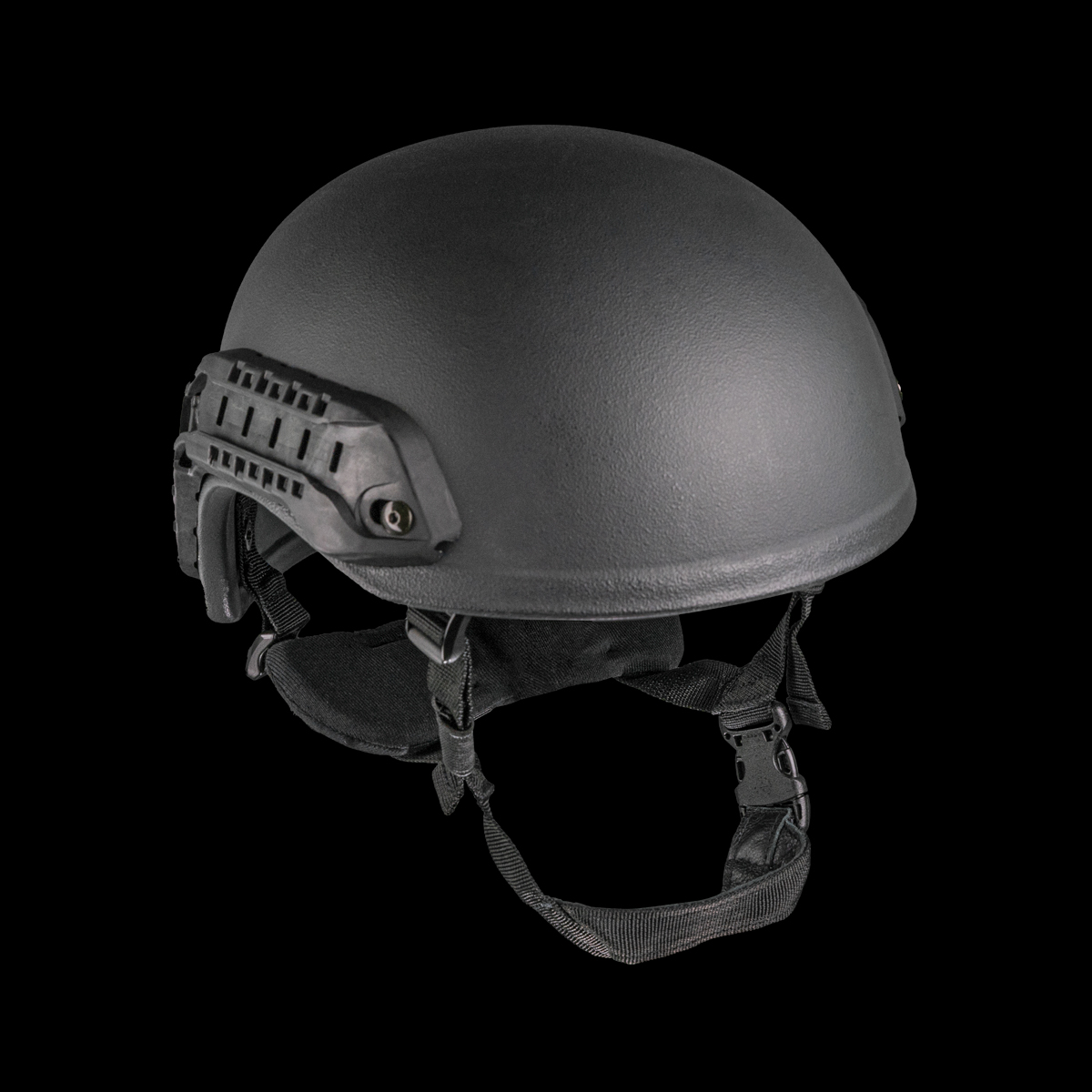

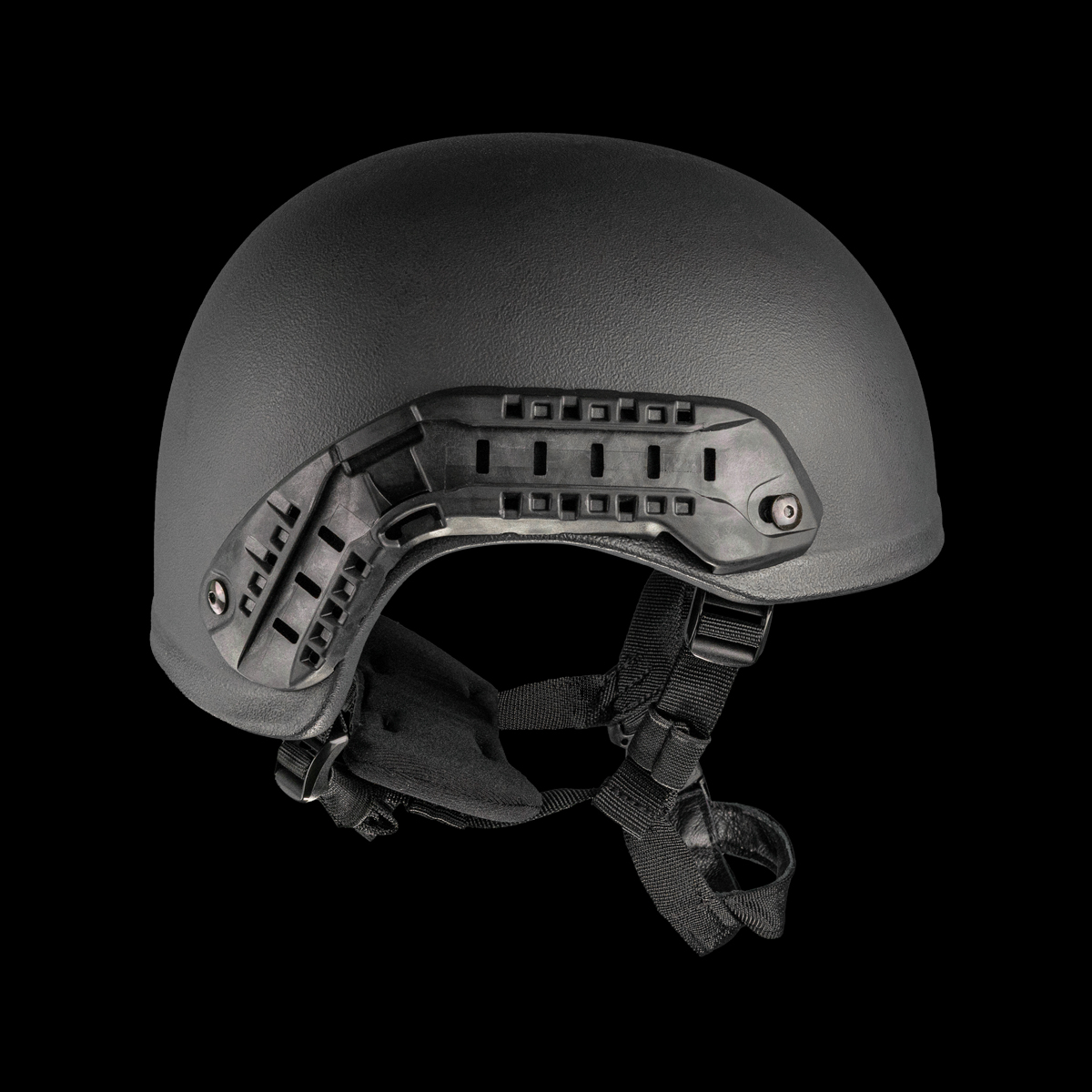

401 Ballistic Helmet

The 401 advanced combat helmet is designed for patrol operations when ballistic head protection is required. The helmet is tested to NIJ 0106.01 including Frag protection according to MilStd 662f. Available with or without tactical add-ons and in high and full cut configurations.

• High-performing ACH/MICH helmet
• NIJ Level IIIA and fragmentation protection
• Independently tested by an NIJ-accredited laboratory per NIJ standard 0106.01, Model 401
• Material Construction: Para-aramid fibers and thermoset resin shell construction
• Head Protection: Front, back, crown, and top of head
• Adjustable: Multiple Harness options and comes standard with 4 pt H

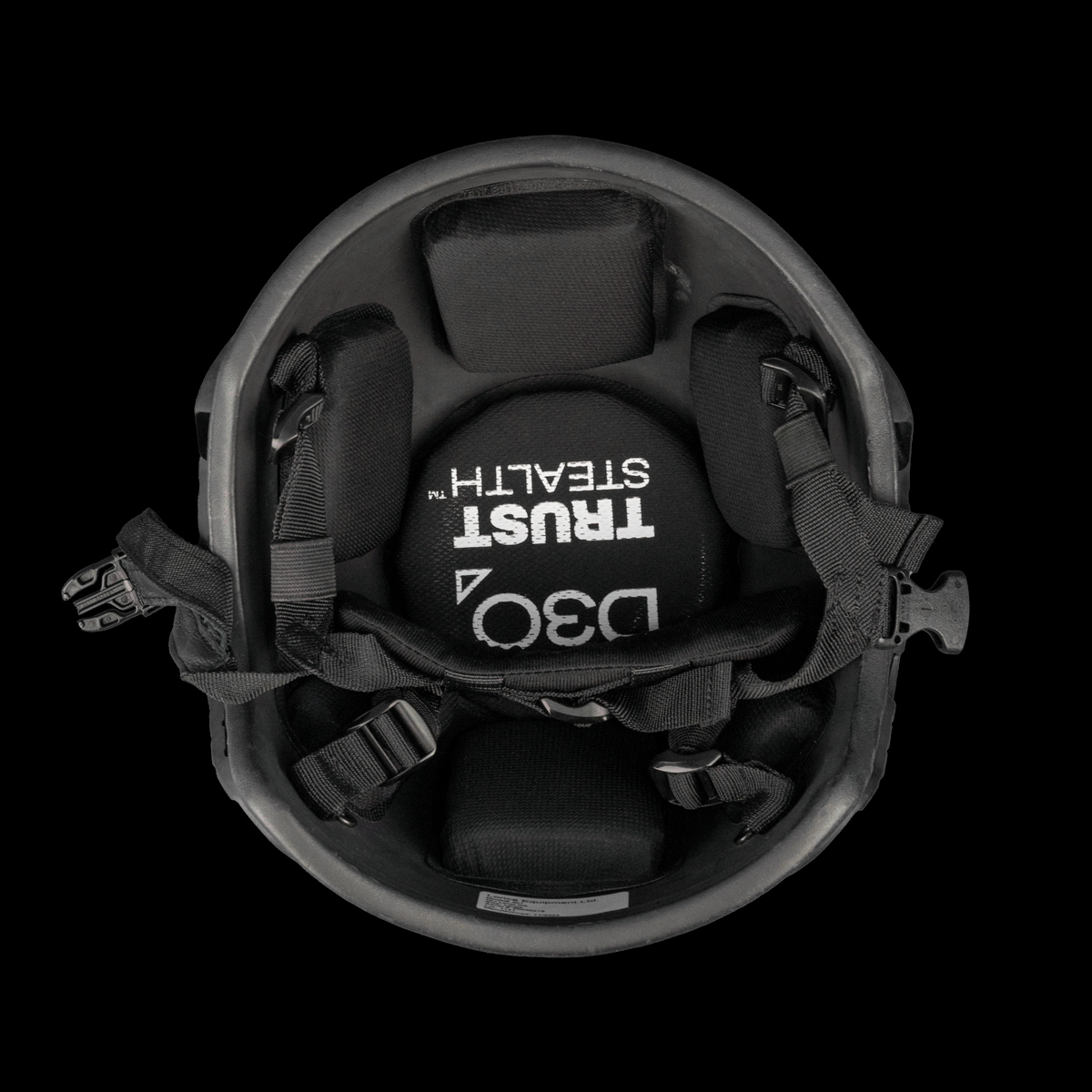

• Harness Padding: 030 TRUST 7 Pad helmet system
• Optional: Rails, Shroud, ISOFit Dial Harness
• Warranty: Five (5) years on all ballistic material excluding exterior cover and one (1) year on exterior cover material and workmanship

Ballistic Specification

• 9mm 124 gr FMJ 1430 ft/s (436 m/s)
• 40 S&W 180 gr FMJ 1155 ft/s (352 m/s)
• .357 Sig 125 gr FMJ 1470 ft/s (448 m/s)
• .357 Mag 158 gr JSP 1430 ft/s (436 m/s)
• .44 Mag 240 gr SWCGC 1430 ft/s (436 m/s)
• .44 Mag 240 gr SJHP 1430 ft/s (436 m/s)
• V50 17gr 2244 ft/s (684 m/s)

Size & Weight Chart

Size	Height	Width	Circumference	Weight
Size: S"	Height: Full Cut	Width: -	Circumference: 20.9" to 21.7"	Weight: 2.8 lbs / 1.27 kg
Size: S"	Height: High Cut	Width: -	Circumference: 20.9" to 21.7"	Weight: 2.5 lbs / 1.13 kg
Size: M"	Height: Full Cut	Width: -	Circumference: 21.7" to 22.5"	Weight: 2.9 lbs / 1.31 kg
Size: M"	Height: High Cut	Width: -	Circumference: 21.7" to 22.5"	Weight: 2.6 lbs / 1.17 kg
Size: L"	Height: Full Cut	Width: -	Circumference: 22.4" to 23.3"	Weight: 3.2 lbs / 1.45 kg
Size: L"	Height: High Cut	Width: -	Circumference: 22.4" to 23.3"	Weight: 2.9 lbs / 1.31 kg
Size: XL"	Height: Full Cut	Width: -	Circumference: 23.3" to 24.5"	Weight: 3.4 lbs / 1.54 kg
Size: XL"	Height: High Cut	Width: -	Circumference: 23.3" to 24.5"	Weight: 3.1 lbs / 1.40 kg

LORICA-401-Helmet-Spec.pdf
