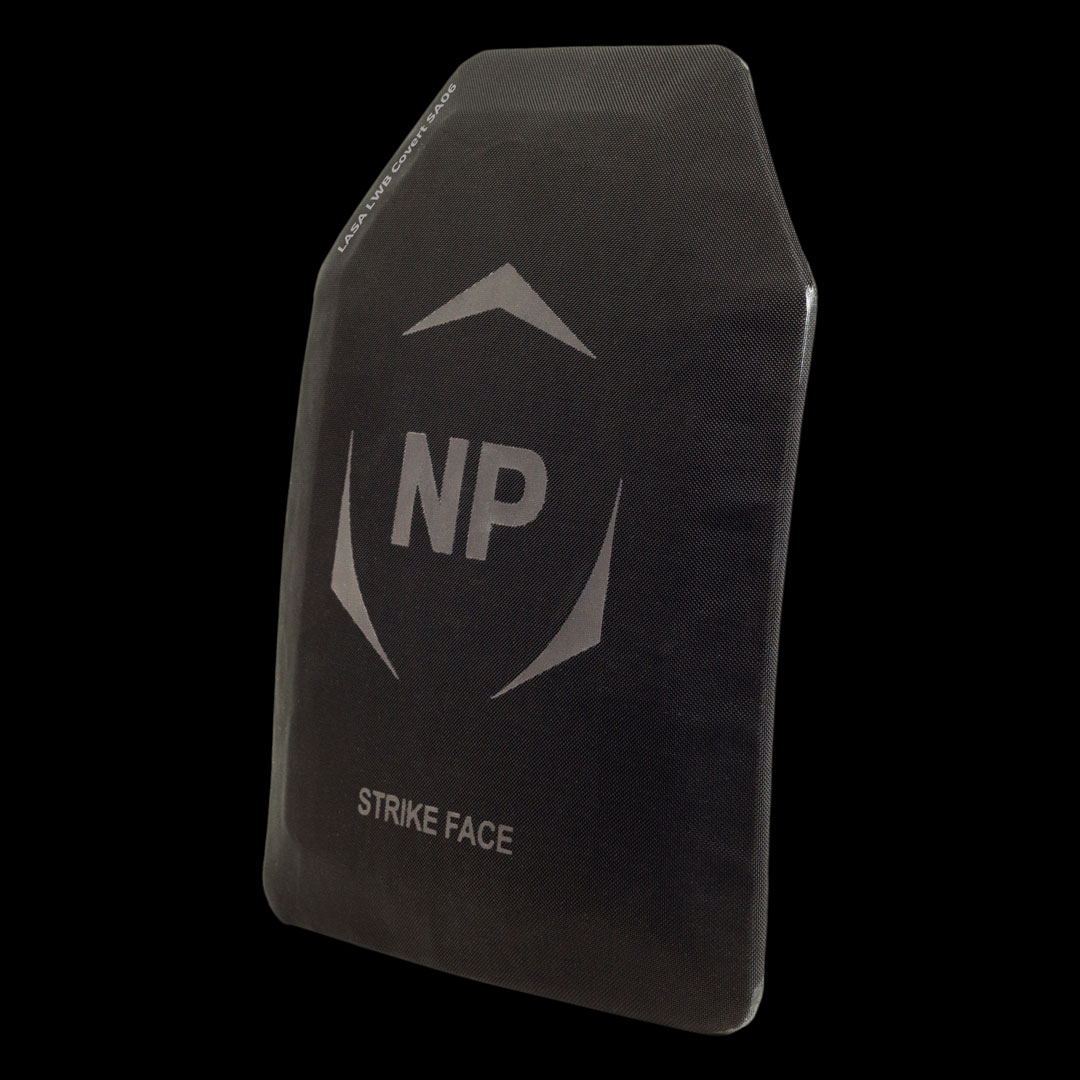

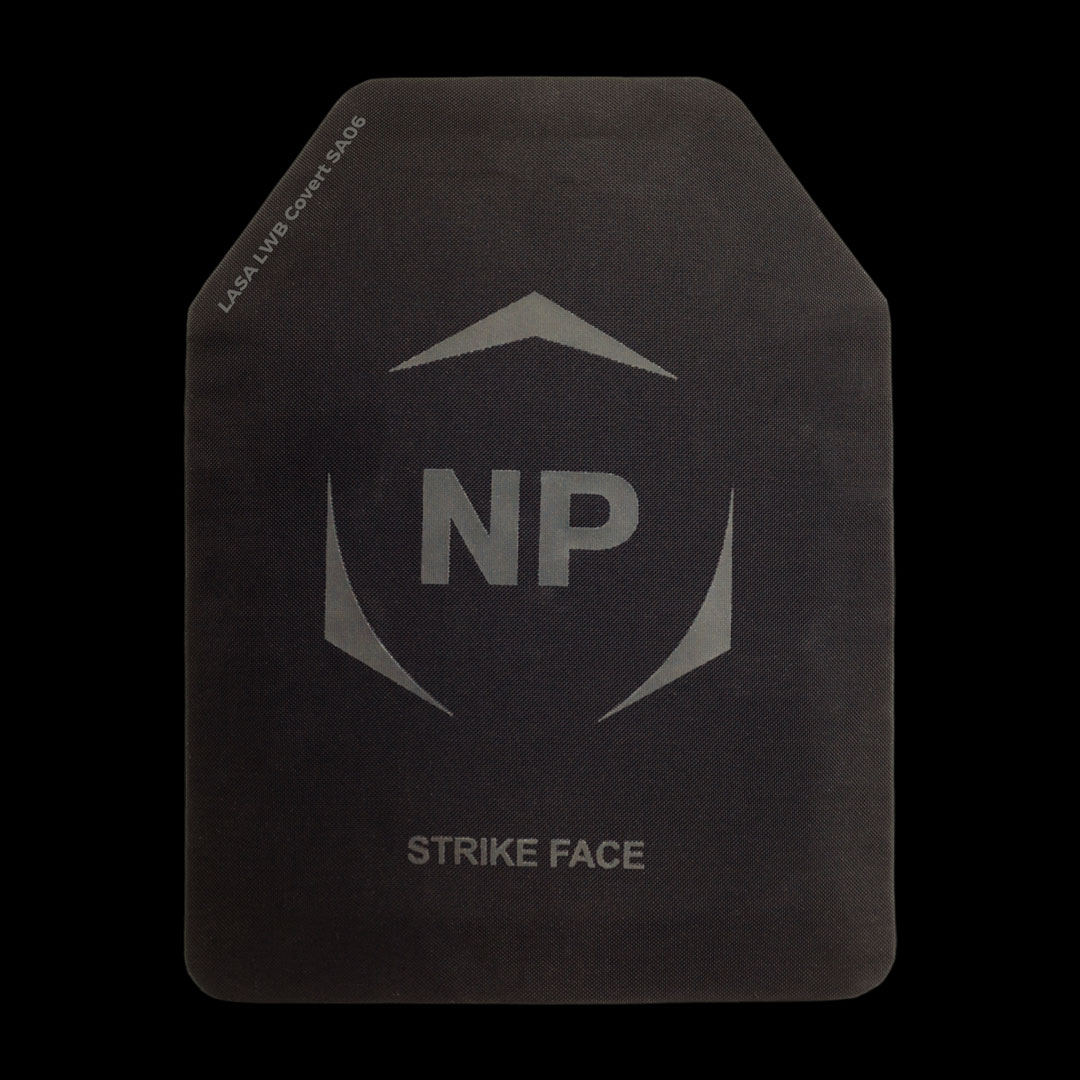

LWB Covert SA06

The cutting edge LWB Covert SA06 body armour plate, designed to fit under standard clothing is ideal for military and law enforcement operations where the wearer needs to blend in with their surroundings.

Designed to be ultra-lightweight and inconspicuous, the LWB Covert SA06 body armour plate weighs just 0.91kg (medium variant) with a 21mm thickness, tapered to 11mm around the edges for enhanced discreetness.

The LWB Covert SA06 works as a standalone solution to deliver high impact, multi-hit protection against special threats at NIJ 0101.06.

LORICA Equipment limited warrants, for a period of sixty (60) months after the “date of issue” that the LWB Covert SA06 shall be free from defects in material and workmanship provided all products are used and maintained in accordance with NP Aerospace’s Use and Care Manual.

Product Specs

• Application Stand Alone Body Armour
• Protection Level Special Threats (see below)
• Configuration Stand-alone
• Plate Thinness Main Area: 21±1 mm / Edges: taper to 10±1 mm
• Areal Weight 14.2 kg/m2
• Plate Mass 0.91 kg (medium plate)
• Buoyancy Positive
• Curveature Multi-Curve
• Materials UHMWPE, Foam
• Cover Ballistic Nylon
• Sizes SAPI S-L
• Threats and Special Threats 5.56 x 45mm 55gr Ball (M193)*
  7.62 x 39mm 123gr PS Ball (Mild Steel Core)*

  *Special Threat Testing conducted in accordance with an abbreviated and modified NIJ Standard 0101.06 and NP Aerospace Testing Protocol.

Size & Weight Chart

Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).

Size	Curveature	Cut	Weight	Dimensions ( A × B × C )
Size: sapi-s	Curveature: multi-curve	Cut: shooter	Weight: 0.80 kg (1.76 lbs)	Dimensions: 22.2 × 29.8 × 2.1 cm (8.74 × 11.73 × 0.83 in)
Size: sapi-m	Curveature: multi-curve	Cut: shooter	Weight: 0.91 kg (2.01 lbs)	Dimensions: 24.1 × 31.2 × 2.1 cm (9.49 × 12.28 × 0.83 in)
Size: sapi-l	Curveature: multi-curve	Cut: shooter	Weight: 1.08 kg (2.38 lbs)	Dimensions: 26.0 × 33.7 × 2.1 cm (10.24 × 13.27 × 0.83 in)

LORICA-LWB-COVERT-SA06-SPEC.pdf
