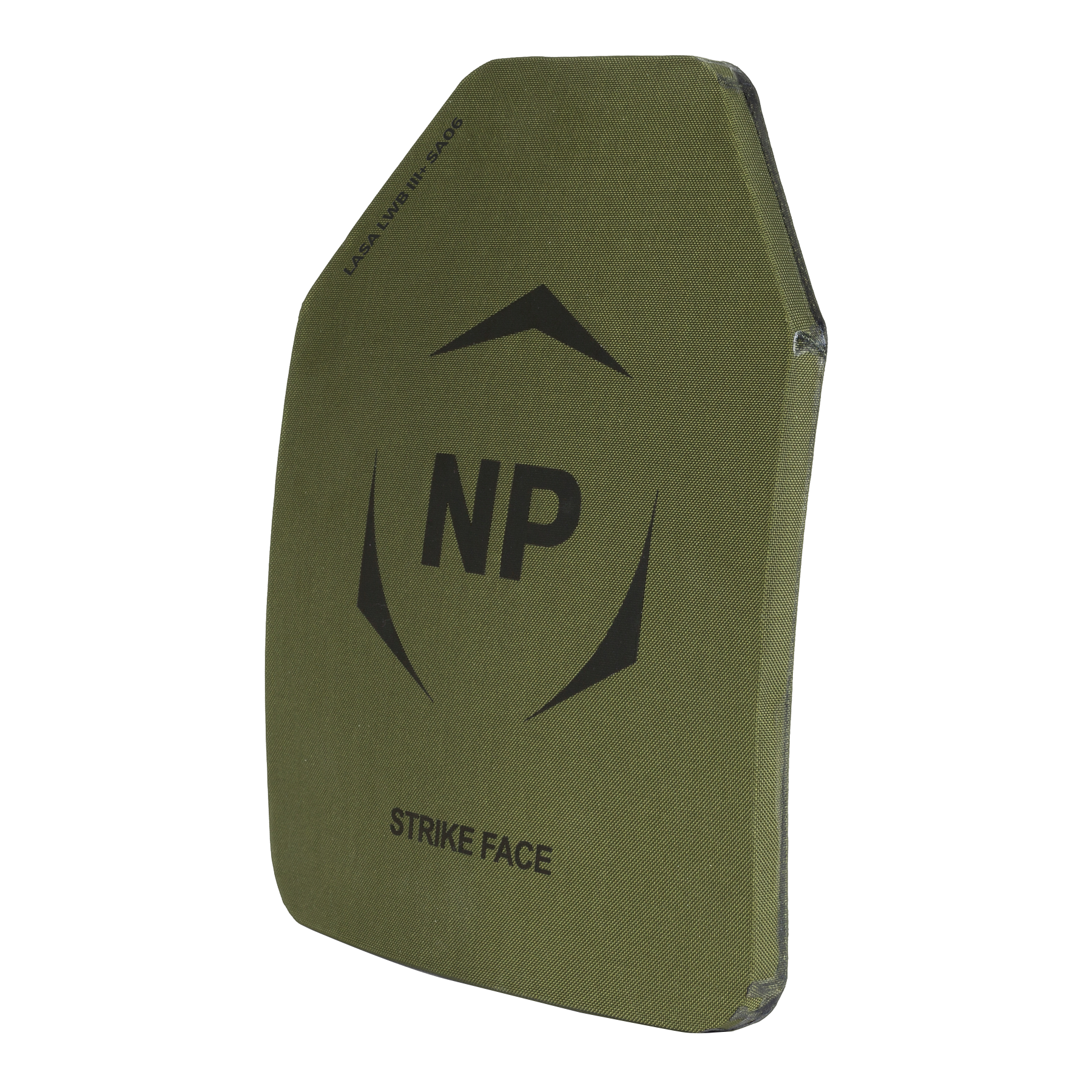

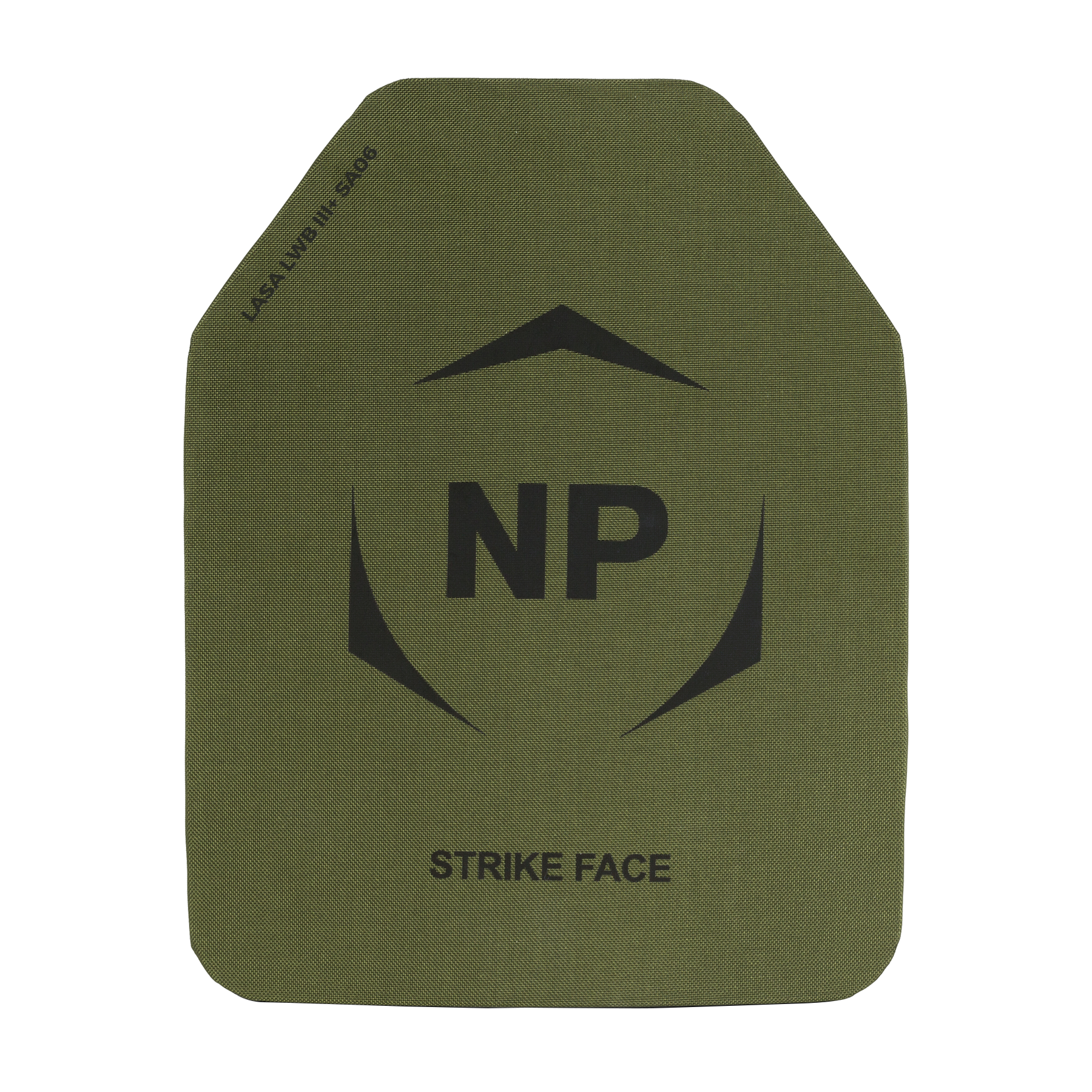

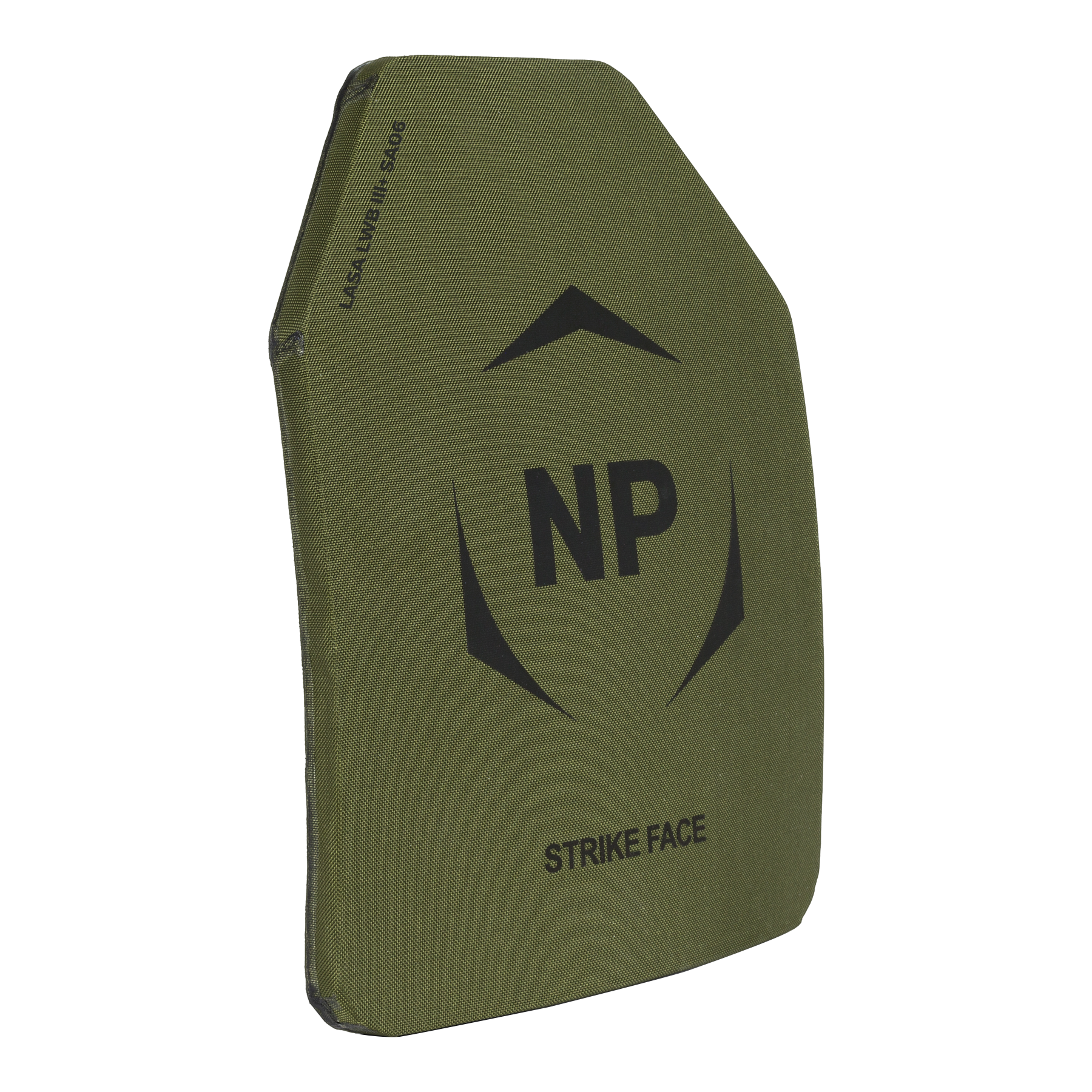

LWB III+ SA06

The cutting edge LASA LWB III+SA06 body armour plate weights just 1.08kg/2.33lbs (medium size) and delivers exceptional multi-hit performance at NIJ Level III and special threats at testing standard 0101.06.

Working as a standalone solution, the LASA LWB III+SA06 does not require additional soft armour to stop threats. It has a thickness of 26mm, is positively buoyant and passes stingiest drop test requirements as prescribed in the NIJ 0101.06 test standard.

Each insert (medium) weighs 1.08kg, significantly reducing the mandatory load placed on military and elite law enforcement personnel, allowing for enhanced mobility or a more strategic allocation of load carriage.

LORICA Equipment limited warrants, for a period of sixty (60) months after the “date of issue” that the Hard Armour Solutions shall be free from defects in material and workmanship provided all products are used and maintained in accordance with NP Aerospace’s Use and Care Manual.

Product Specs

• Product Name LASA LWB III+ SA06
• Application Standalone Body Armour
• Protection Level In accordance with NIJ 0101.06
• Testing Standard Special Threats (see below) and tested in accordance with NIJ 0101.06 Level III
• Configuration Stand alone
• Thinness 27 mm
• Areal Weight 14.7 kg/m2
• Buoyancy Positive
• Curvature Multi-Curve
• Materials UHMWPE
• Cover Ballistic Nylon
• Sizes SAPI S – L available
• Threats and Special Threats 7.62 x 51mm 149gr M80 FMJ
  5.56 x 45mm 55gr Ball (M193)*
  7.62 x 39mm 123gr PS Ball (Mild Steel Core)*

  *Special Threat Testing conducted in accordance with an abbreviated and modified NIJ Standard 0101.06 and NP Aerospace Testing Protocol.

Size & Weight Chart

Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).

Size	Curveature	Cut	Weight	Dimensions ( A × B × C )
Size: 6x6	Curveature: multi-curve	Cut: full	Weight: 0.33 kg (0.73 lbs)	Dimensions: 15.2 × 15.2 × 2.7 cm (5.98 × 5.98 × 1.06 in)
Size: sapi-s	Curveature: multi-curve	Cut: shooter	Weight: 0.93 kg (2.05 lbs)	Dimensions: 22.2 × 29.8 × 2.7 cm (8.74 × 11.73 × 1.06 in)
Size: sapi-m	Curveature: multi-curve	Cut: shooter	Weight: 1.06 kg (2.34 lbs)	Dimensions: 24.1 × 31.2 × 2.7 cm (9.49 × 12.28 × 1.06 in)
Size: sapi-l	Curveature: multi-curve	Cut: shooter	Weight: 1.24 kg (2.73 lbs)	Dimensions: 26.0 × 33.7 × 2.7 cm (10.24 × 13.27 × 1.06 in)

LORICA-LWB-III-SA06-SPEC.pdf
