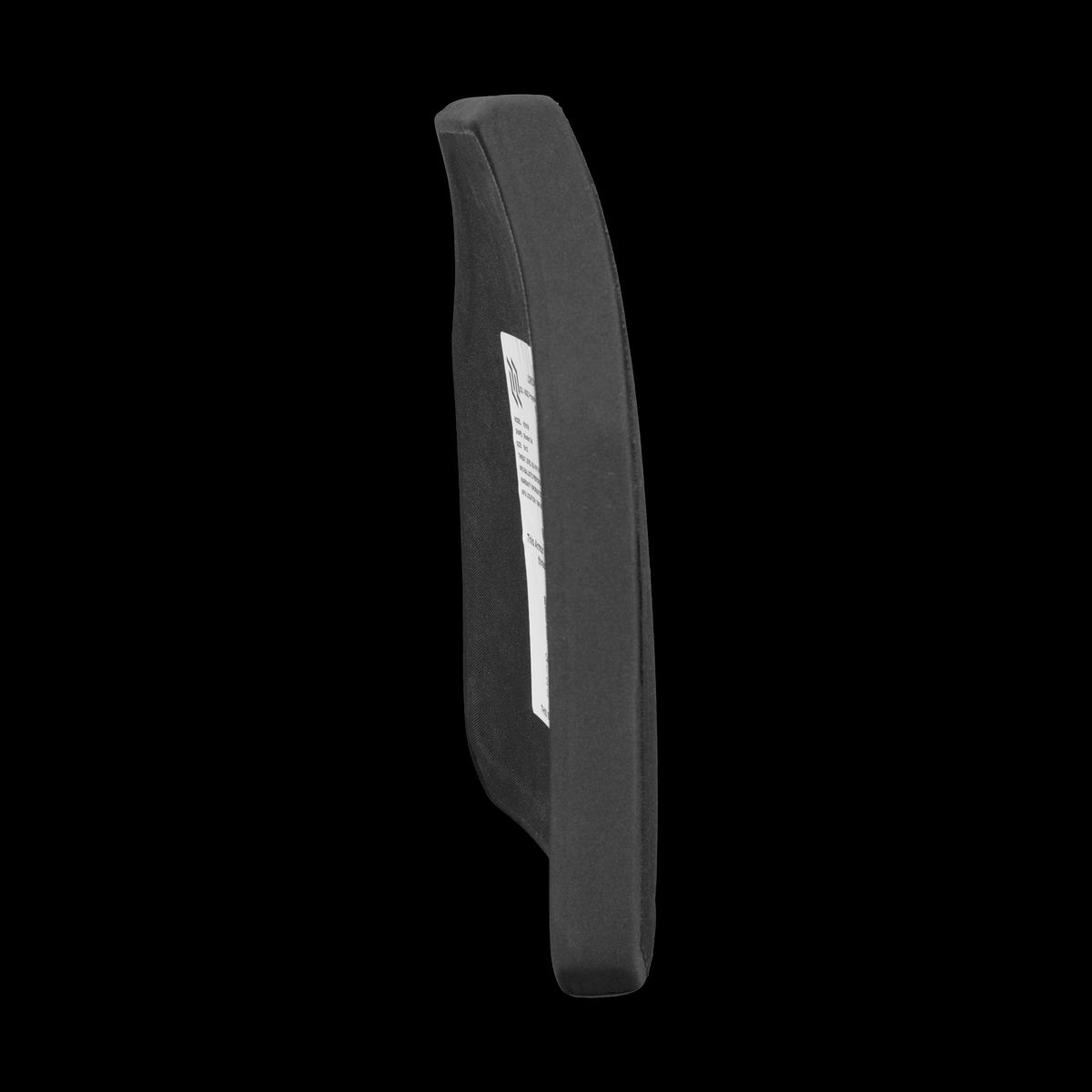

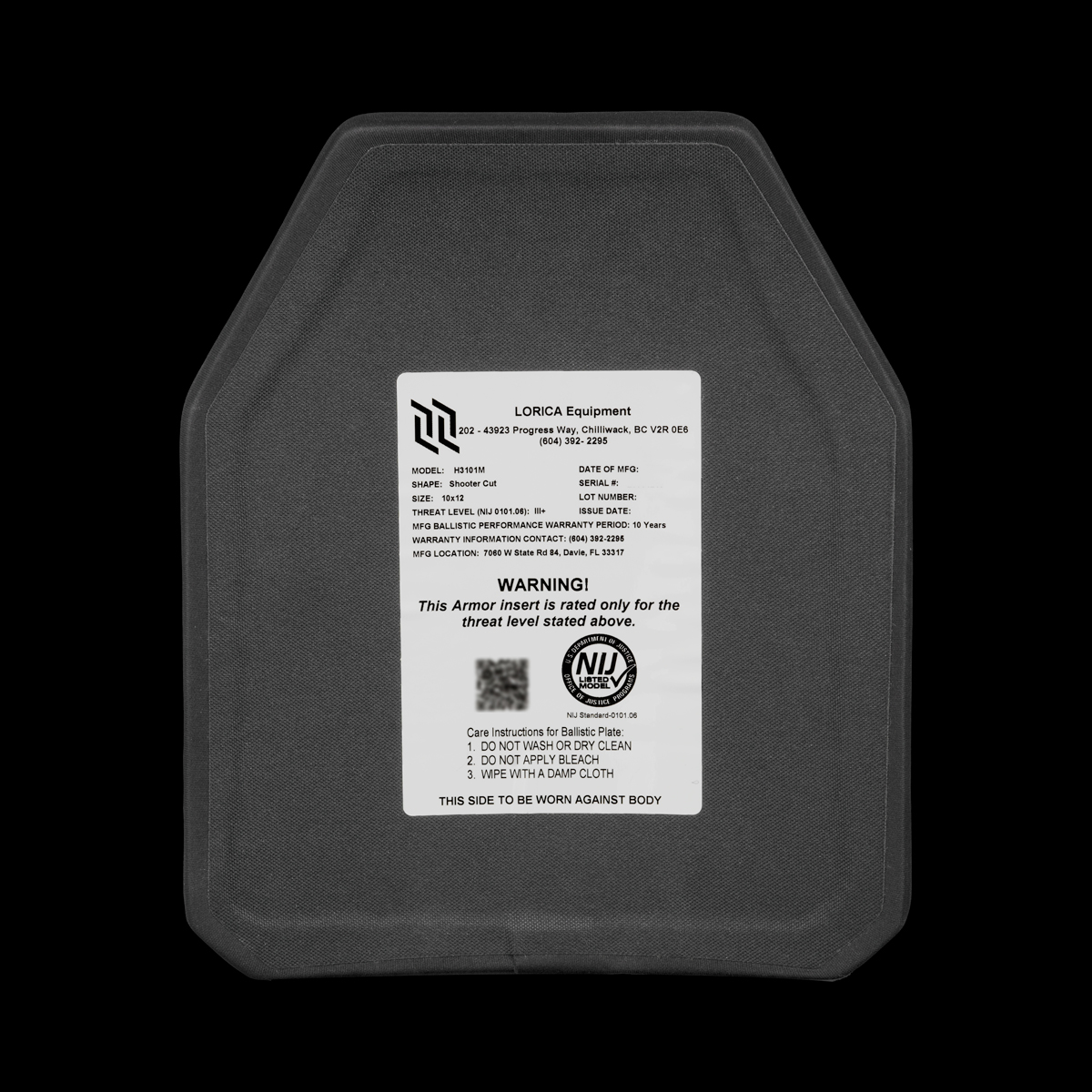

H3101

The H3101 is lightweight, durable high-performing NIJ Certified Stand Alone Level III+ plate. An ideal solution for law enforcement as the plate defeats most of the potential threats that are faced with both military, and hunting grades of ammunition.

• Made with Ceramic and UHMWPE materials which are processed to create a lighter, thinner plate, high performing plate
• NIJ 0101.06 Certified Level III, Model H3101
• User-friendly design fits to the contours of the body for maximum safety and comfort
• Rugged, reliable, and stress fracture resistant
• Fully sealed to protect against liquids, chemicals, and harsh elements

The ballistic specification is not exhaustive and may not include threats that can be defeated by this rifle plate. Please contact us if you require your plate to defeat ammunition not listed above.

Width and length dimensions are ±6mm (±0.25 in). All weights are ±113g (0.25 lbs).

Ballistic Specification

• 7.62x51 NATO Ball (M80) 2780 ft/s (848 m/s)
• 5.56x45 NATO Ball (M193) 3117 ft/s (950 m/s)
• 5.56x45 SS109 (M855) 3117 ft/s (950 m/s)
• 7.62x39 AK47 API BZ 2380 ft/s (725m/s)
• 7.62x39 AK47 MSC 2380 ft/s (725m/s)
• 7.62x54R LPS 2840 ft/s (865 m/s)
• .300 Win Mag 2960 ft/s (905 m/s)

Size & Weight Chart

Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).

Size	Curveature	Cut	Weight	Dimensions ( A × B × C )
Size: 6x6	Curveature: single-curve	Cut: full	Weight: 0.72 kg (1.59 lbs)	Dimensions: 15.2 × 15.2 × 0.25 cm (5.98 × 5.98 × 0.1 in)
Size: 8x10	Curveature: single-curve	Cut: full	Weight: 1.3 kg (2.87 lbs)	Dimensions: 20.3 × 25.4 × 0.25 cm (7.99 × 10 × 0.1 in)
Size: 8x10	Curveature: single-curve	Cut: shooter	Weight: 1.2 kg (2.65 lbs)	Dimensions: 20.3 × 25.4 × 0.25 cm (7.99 × 10 × 0.1 in)
Size: 10x12	Curveature: single-curve	Cut: full	Weight: 2.1 kg (4.63 lbs)	Dimensions: 25.4 × 30.5 × 0.25 cm (10 × 12.01 × 0.1 in)
Size: 10x12	Curveature: single-curve	Cut: shooter	Weight: 2.0 kg (4.41 lbs)	Dimensions: 25.4 × 30.5 × 0.25 cm (10 × 12.01 × 0.1 in)
