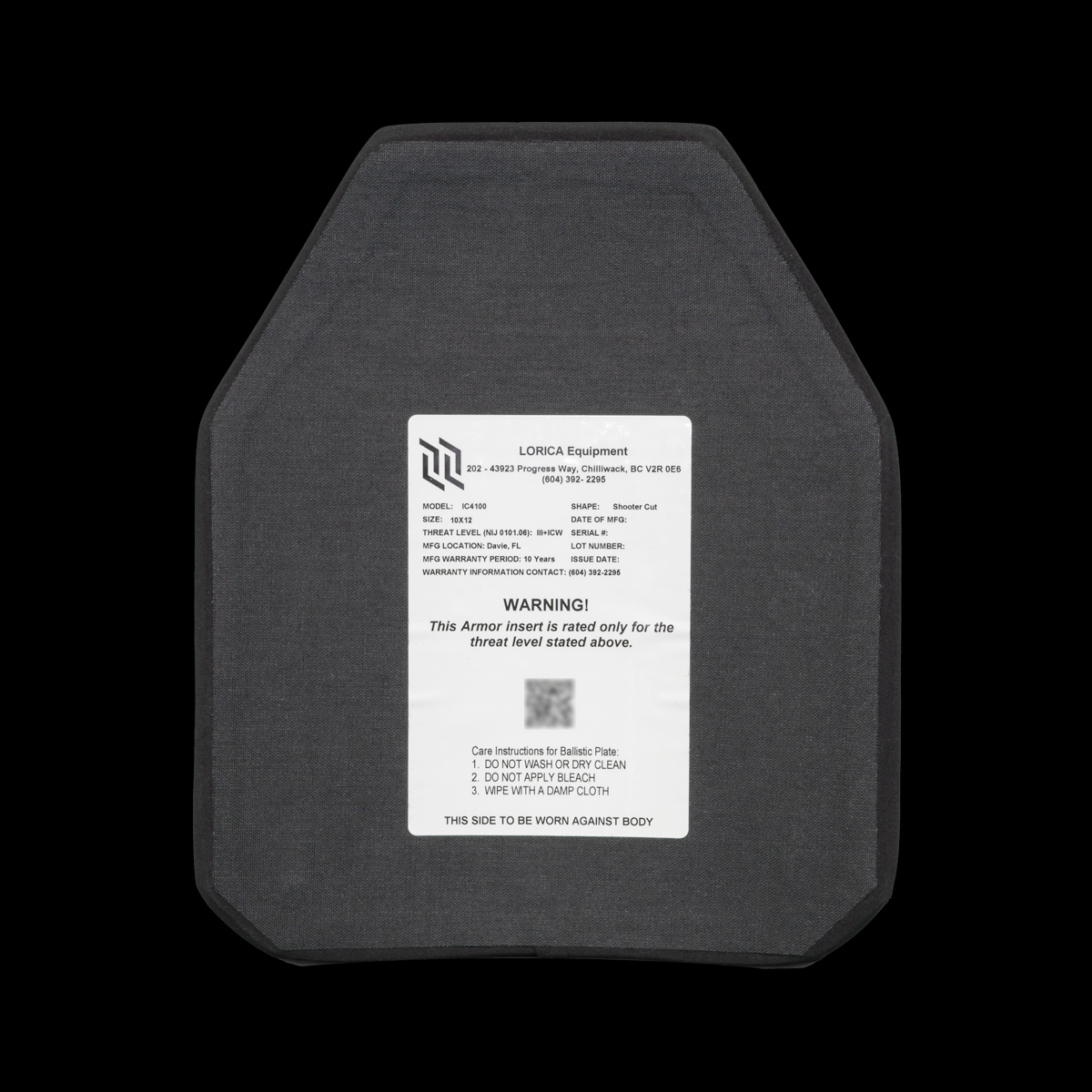

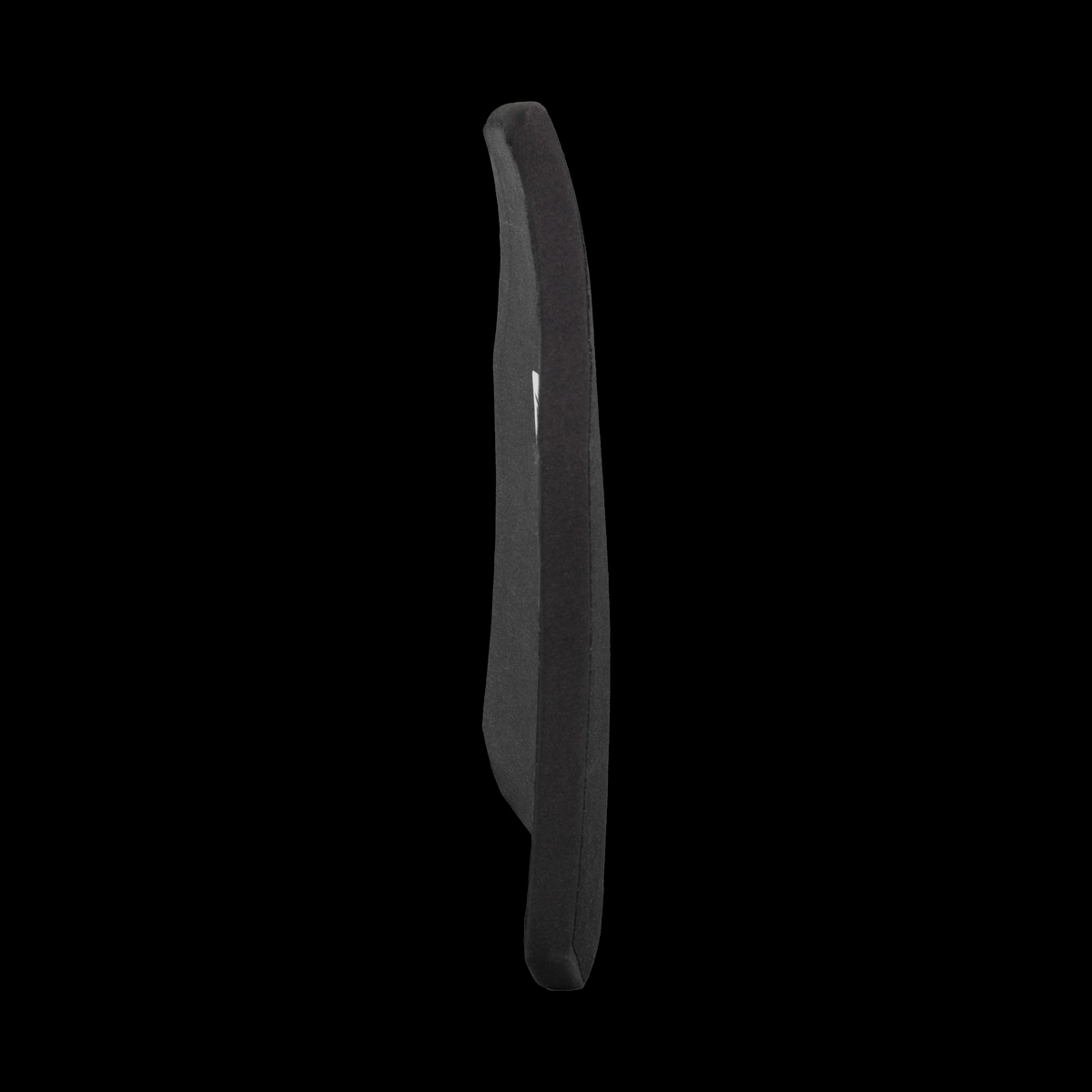

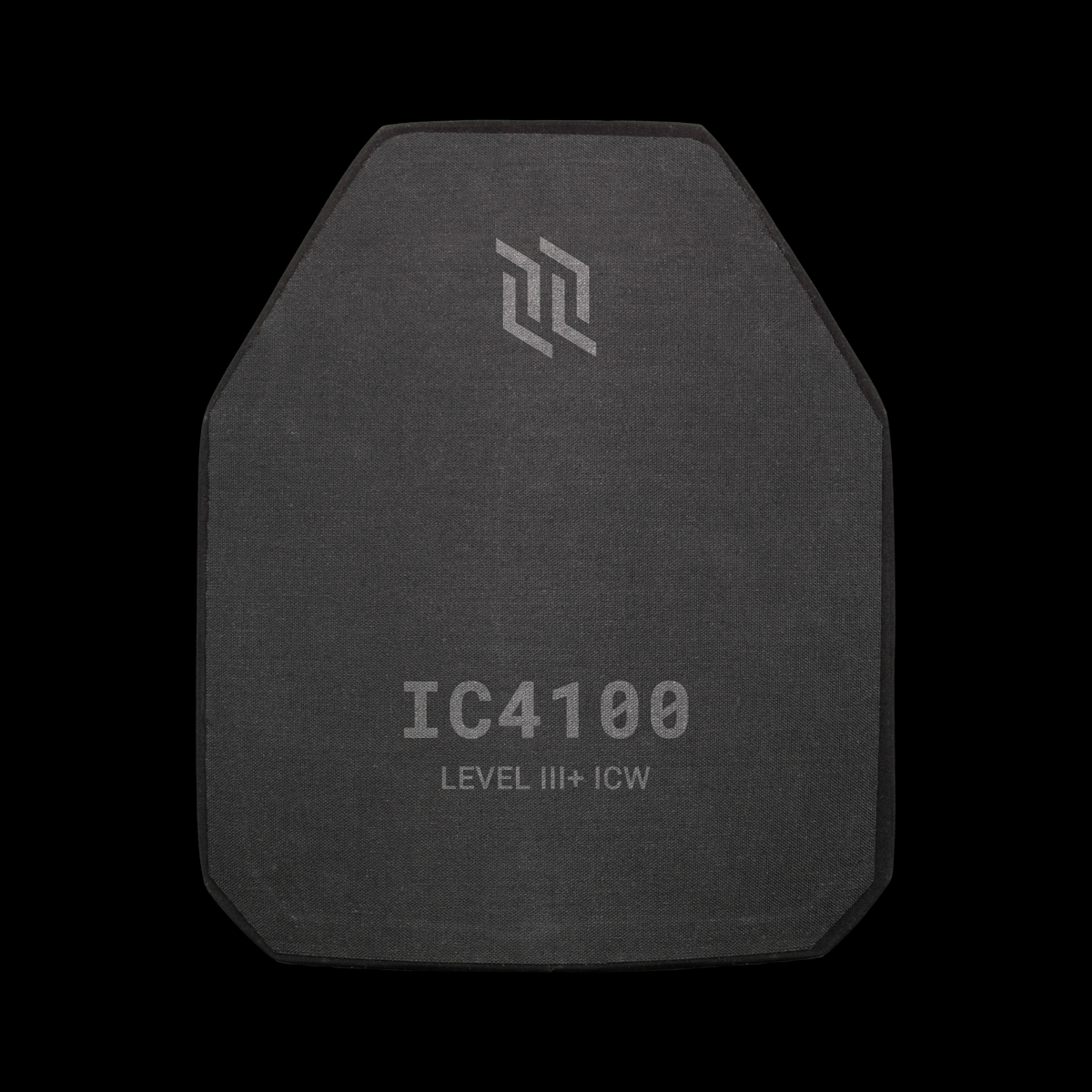

The IC4100 Level III+ rifle plate is designed for high performance against rifle ammunition including the M855/SS109 round in a lightweight, multi-curve structure to provide maximum protection when worn in-conjunction with Level IIIA soft armour.
-
Multi-Curve
-
Ultra-Lightweight
-
Special Threat Tested
-
The IC4100 Level III+ rifle plate is designed for high performance against rifle ammunition including the M855/SS109 round in a lightweight, multi-curve structure to provide maximum protection when worn in-conjunction with Level IIIA soft armour.
Item sold individually as a single plate. Images on Strike Face for display purposes only.
- Made with Ceramic and UHMWPE materials which are processed to create a lighter, thinner, high performing plate
- Independently Tested NIJ Level III+ In-Conjunction with Soft Armor, Model IC4100
- Multi Curve design fits to the contours of the body for maximum safety and comfort
- Fully sealed to protect against liquids, chemicals and harsh elements
- Thinness: 0.6″ (15.2mm)
- Multi-hit capabilities
- Five (5) Year Warranty on Ballistic Performance
-
The ballistic specification is not exhaustive and may not include threats that can be defeated by this rifle plate. Please contact us if you require your plate to defeat ammunition not listed above.
Width and length dimensions are ±6mm (±0.25 in). All weights are ±113g (0.25 lbs).
- NIJ 0101.06 7.62 x 51 NATO Ball (M80)
- Special 5.56 x 45mm, 55gr, M193
- Special 5.56 x 45mm (M855/SS109)
- Special 7.62 x 39mm, 123gr, MSC (M43)
Ballistic Specification
Size & Weight Chart
Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).Size Curveature Cut Weight Dimensions ( A × B × C ) Size: 6x8 Curveature: single-curve Cut: full Weight: 0.82 kg (1.81 lbs) Dimensions: 15.24 × 20.32 × 2.413 cm (6 × 8 × 0.95 in) Size: 8x10 Curveature: multi-curve Cut: shooter Weight: 1.18 kg (2.6 lbs) Dimensions: 20.32 × 25.4 × 2.413 cm (8 × 10 × 0.95 in) Size: 8x10 Curveature: multi-curve Cut: full Weight: 1.32 kg (2.91 lbs) Dimensions: 20.32 × 25.4 × 2.413 cm (8 × 10 × 0.95 in) Size: 10x12 Curveature: multi-curve Cut: shooter Weight: 1.86 kg (4.1 lbs) Dimensions: 25.4 × 30.48 × 2.413 cm (10 × 12 × 0.95 in) Size: 10x12 Curveature: multi-curve Cut: full Weight: 2.0 kg (4.41 lbs) Dimensions: 25.4 × 30.48 × 2.413 cm (10 × 12 × 0.95 in) -
