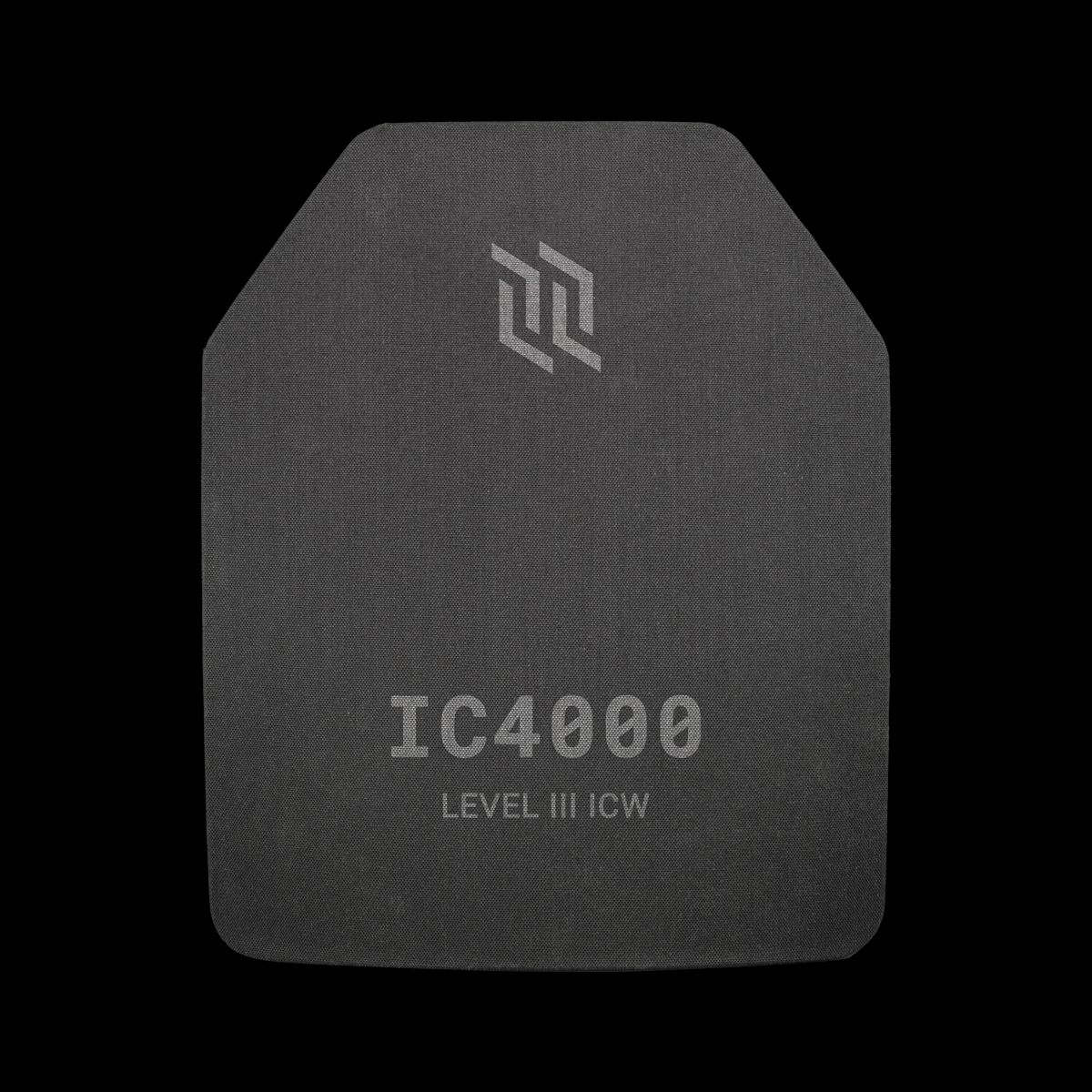

The IC4000 Level III ICW rifle plate is one of the thinnest and lightest of its kind on the market. Designed for high performance and in a multi-curve structure to provide maximum protection and all day comfort when used in-conjunction with Level IIIA soft armour.
-
Multi-Curve
-
Ultra-Lightweight
-
Special Threat Tested
-
The IC4000 Level III ICW rifle plate is one of the thinnest and lightest of its kind on the market. Designed for high performance and in a multi-curve structure to provide maximum protection and all day comfort when used in-conjunction with Level IIIA soft armour.
Item sold individually as a single plate. Images on Strike Face for display purposes only.
- Made with UHMWPE fabrics and special pressing techniques to create a lighter and thinner plate
- NIJ 0101.06 Level III In-Conjunction with Soft Armor, Model IC4000

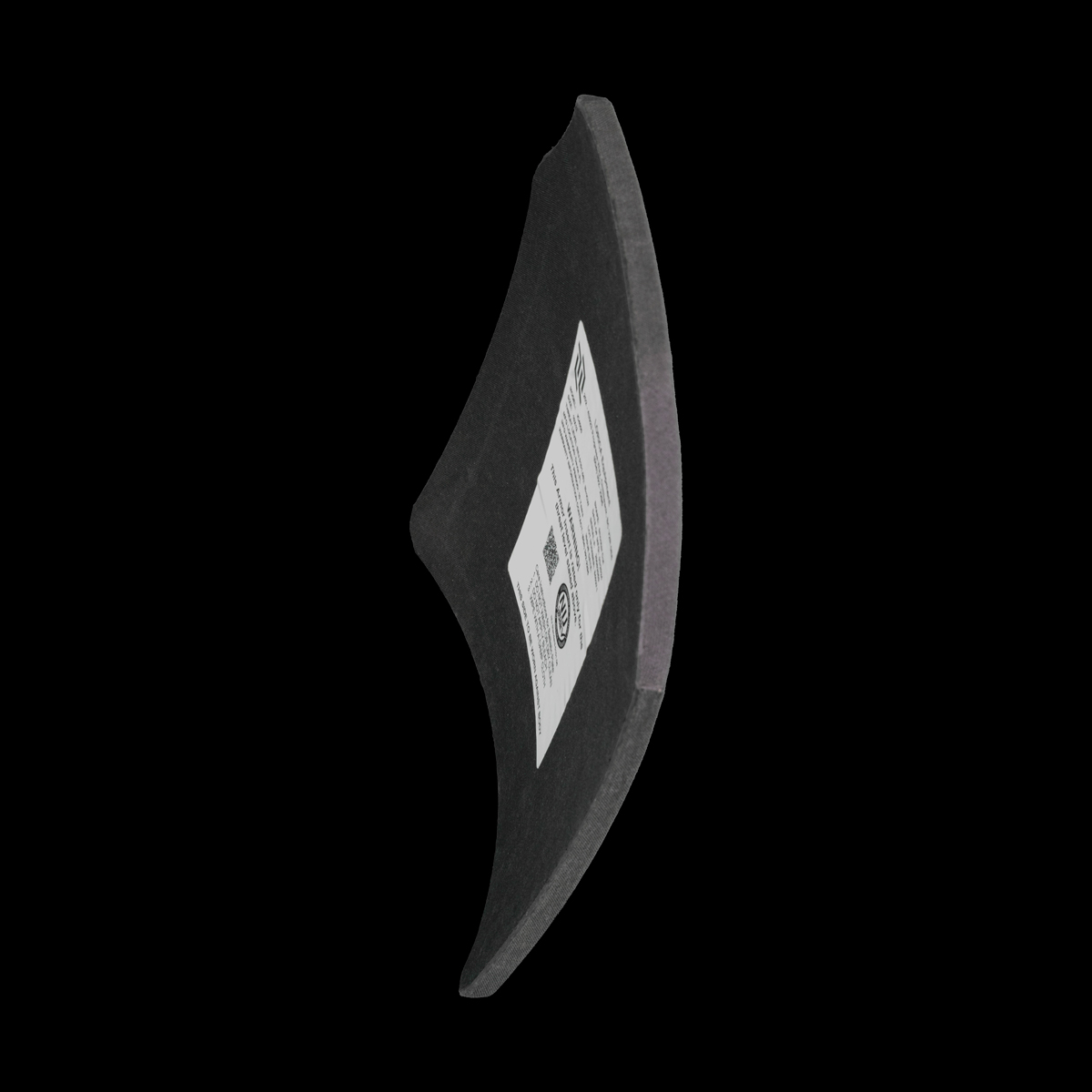

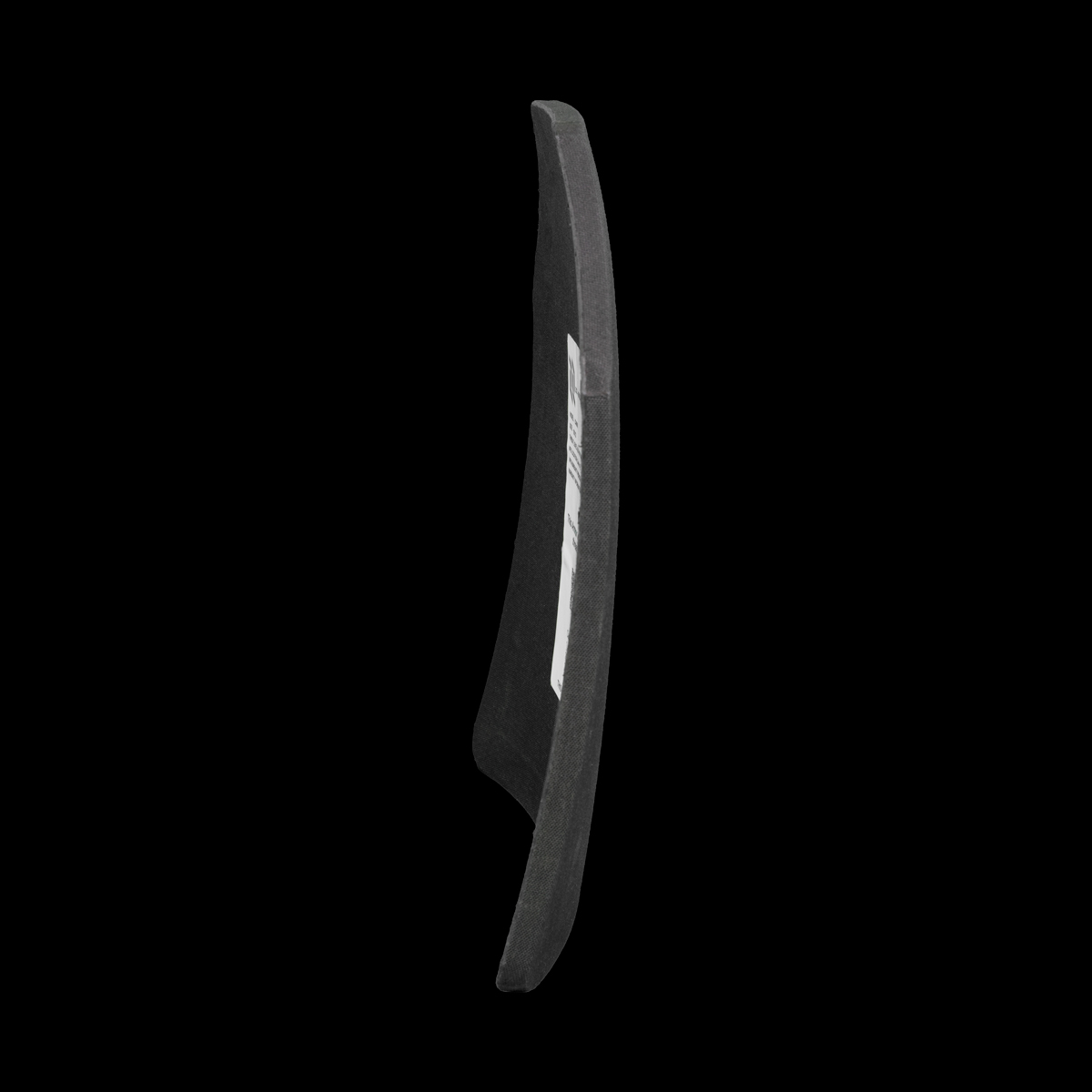

- Multi Curve design fits to the contours of the body for maximum safety and comfort
- Rugged, reliable, and stress fracture resistant
- Fully sealed with Polyurea to protect against liquids, chemicals and harsh elements
- Thinness: 0.4″ (10.1mm)
- Ten (10) Year Warranty on Ballistic Performance
-
The ballistic specification is not exhaustive and may not include threats that can be defeated by this rifle plate. Please contact us if you require your plate to defeat ammunition not listed above.
Width and length dimensions are ±6mm (±0.25 in). All weights are ±113g (0.25 lbs).
- NIJ 0101.06 7.62 x 51 NATO Ball (M80)
- Special 5.56 x 45mm, 55gr, M193
- Special 7.62 x 39mm M43 (MSC)
- Special 7.62 x 39mm, 123gr, FMJ (PS Ball)
- Special 7.62 x 39mm, 123gr, MSC (Type 56)
- Special 7.62 x 39mm, 123gr, FMJ (PS Ball)
Ballistic Specification
Size & Weight Chart
Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).Size Curveature Cut Weight Dimensions ( A × B × C ) Size: 6x6 Curveature: single-curve Cut: full Weight: 0.26 kg (0.57 lbs) Dimensions: 15.24 × 15.24 × 2.413 cm (6 × 6 × 0.95 in) Size: 6x8 Curveature: single-curve Cut: full Weight: 0.31 kg (0.68 lbs) Dimensions: 15.24 × 20.32 × 2.413 cm (6 × 8 × 0.95 in) Size: 8x10 Curveature: multi-curve Cut: shooter Weight: 0.48 kg (1.06 lbs) Dimensions: 20.32 × 25.4 × 2.413 cm (8 × 10 × 0.95 in) Size: 8x10 Curveature: multi-curve Cut: swimmer Weight: 0.45 kg (0.99 lbs) Dimensions: 20.32 × 25.4 × 2.413 cm (8 × 10 × 0.95 in) Size: 10x12 Curveature: multi-curve Cut: shooter Weight: 0.75 kg (1.65 lbs) Dimensions: 25.4 × 30.48 × 2.413 cm (10 × 12 × 0.95 in) Size: 10x12 Curveature: multi-curve Cut: swimmer Weight: 0.69 kg (1.52 lbs) Dimensions: 25.4 × 30.48 × 2.413 cm (10 × 12 × 0.95 in) Size: sapi-xs Curveature: multi-curve Cut: sapi Weight: 0.52 kg (1.15 lbs) Dimensions: 18.4 × 29.2 × 2.413 cm (7.24 × 11.5 × 0.95 in) Size: sapi-s Curveature: multi-curve Cut: sapi Weight: 0.64 kg (1.41 lbs) Dimensions: 22.2 × 29.8 × 2.413 cm (8.74 × 11.73 × 0.95 in) Size: sapi-m Curveature: multi-curve Cut: sapi Weight: 0.74 kg (1.63 lbs) Dimensions: 24.1 × 31.8 × 2.413 cm (9.49 × 12.52 × 0.95 in) Size: sapi-l Curveature: multi-curve Cut: sapi Weight: 0.85 kg (1.87 lbs) Dimensions: 26 × 33.7 × 2.413 cm (10.24 × 13.27 × 0.95 in) Size: sapi-xl Curveature: multi-curve Cut: sapi Weight: 1.04 kg (2.29 lbs) Dimensions: 27.9 × 35.6 × 2.413 cm (10.98 × 14.02 × 0.95 in) -
