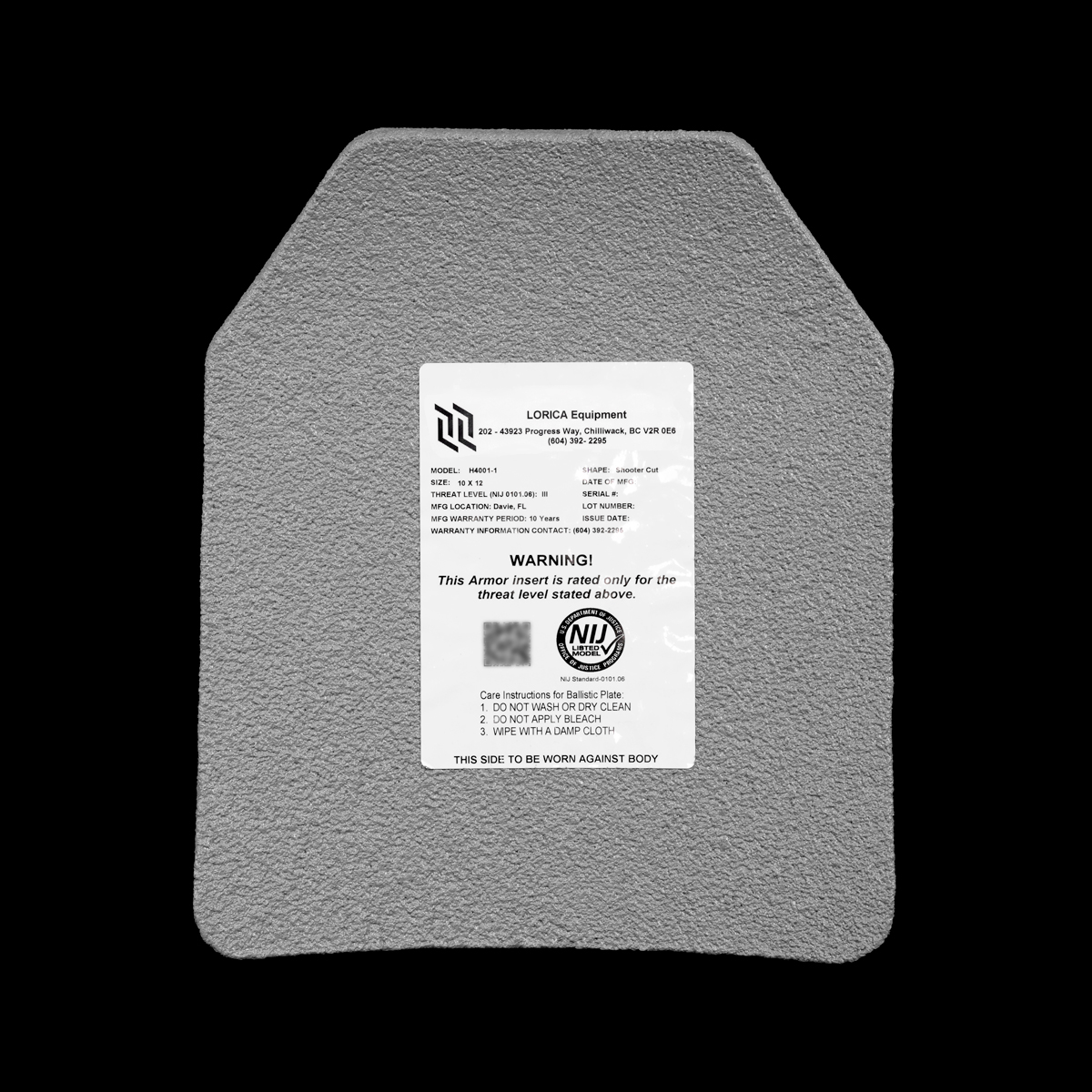

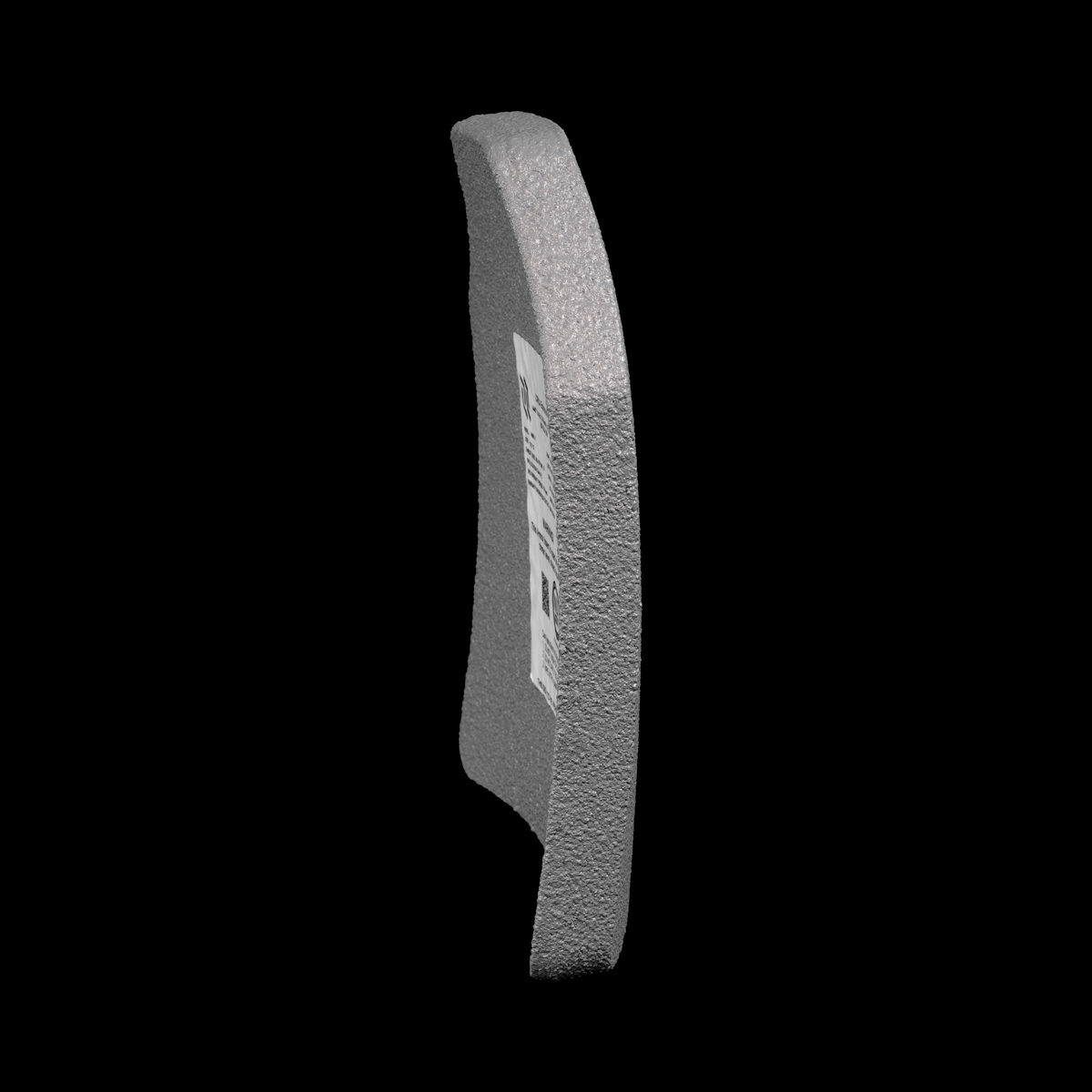

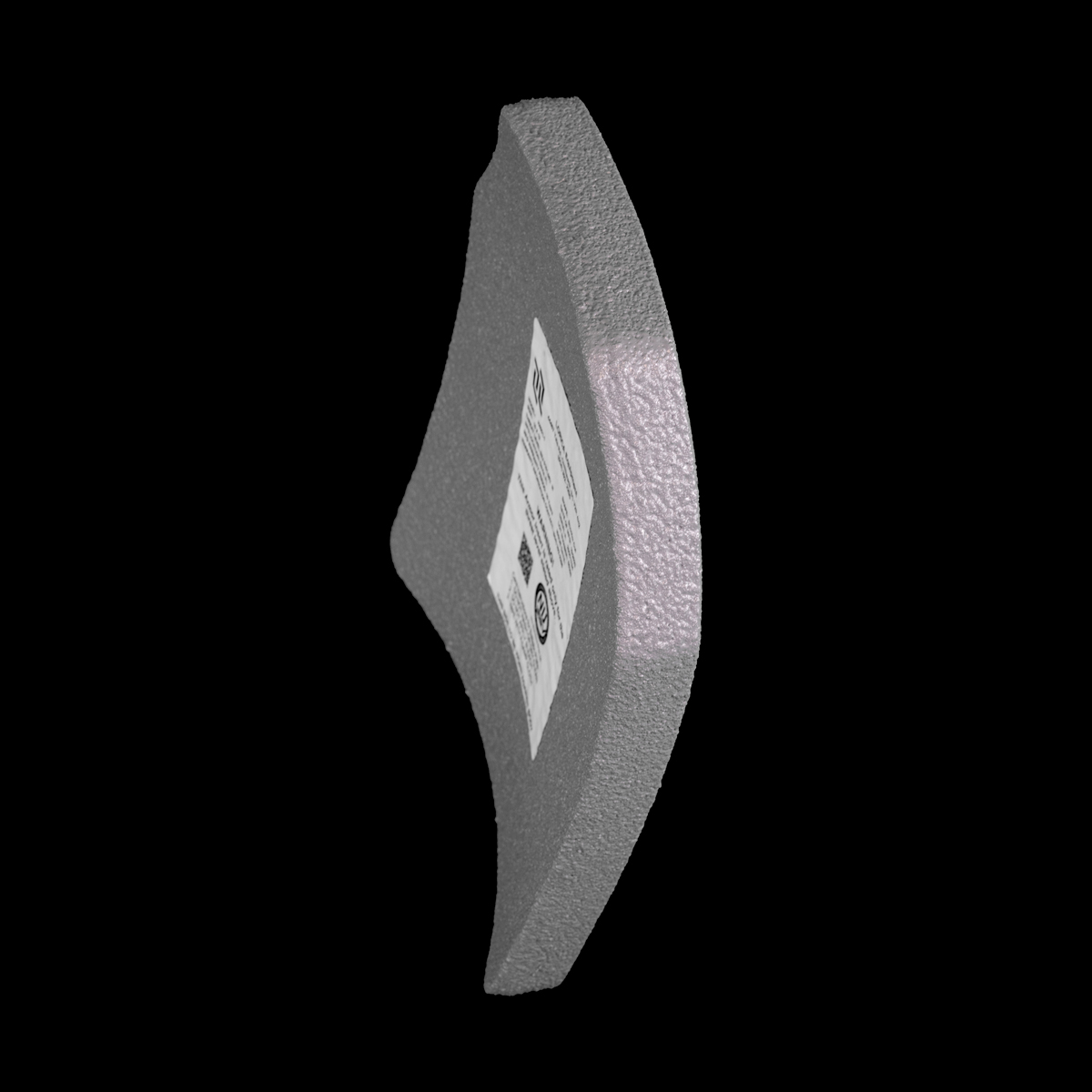

The H4001-1 Level III rifle plate is designed for high performance against rifle ammunition in a lightweight, multi-curve structure to provide essential stand alone protection and operator comfort.
-
Multi-Curve
-
Lightweight
-
Special Threat Tested
-
The H4001-1 Level III rifle plate is designed for high performance against rifle ammunition in a lightweight, multi-curve structure to provide essential stand alone protection and operator comfort.
Item sold individually as a single plate. Images on Strike Face for display purposes only.
- Made with UHMWPE materials which are processed to create a lighter, thinner, high performing plate
- NIJ 0101.06 Certified Level III, Model H4001-1
- Stand alone protection
- Thinness: 0.95″ (24.1mm)
- User-friendly design fits to the contours of the body for maximum safety and comfort
- Rugged, reliable, and stress fracture resistant
- Fully sealed to protect against liquids, chemicals, and harsh elements
- Ten (10) year warranty on ballistic performance
-
The ballistic specification is not exhaustive and may not include threats that can be defeated by this rifle plate. Please contact us if you require your plate to defeat ammunition not listed above.
Width and length dimensions are ±6mm (±0.25 in). All weights are ±113g (0.25 lbs).
- NIJ 0101.06 7.62 x 51 NATO Ball (M80)
- Special 5.56 x 45mm, 55gr, M193
- Special 7.62 x 39mm M43 (MSC)
Ballistic Specification
Size & Weight Chart
Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).Size Curveature Cut Weight Dimensions ( A × B × C ) Size: 6x6 Curveature: single-curve Cut: full Weight: 0.45 kg (0.99 lbs) Dimensions: 15.24 × 15.24 × 2.413 cm (6 × 6 × 0.95 in) Size: 6x8 Curveature: single-curve Cut: full Weight: 0.59 kg (1.3 lbs) Dimensions: 15.24 × 20.32 × 2.413 cm (6 × 8 × 0.95 in) Size: 8x10 Curveature: multi-curve Cut: full Weight: 0.99 kg (2.18 lbs) Dimensions: 20.32 × 25.4 × 2.413 cm (8 × 10 × 0.95 in) Size: 8x10 Curveature: multi-curve Cut: shooter Weight: 0.9 kg (1.98 lbs) Dimensions: 20.32 × 25.4 × 2.413 cm (8 × 10 × 0.95 in) Size: 10x12 Curveature: multi-curve Cut: full Weight: 1.54 kg (3.4 lbs) Dimensions: 25.4 × 30.48 × 2.413 cm (10 × 12 × 0.95 in) Size: 10x12 Curveature: multi-curve Cut: shooter Weight: 1.45 kg (3.2 lbs) Dimensions: 25.4 × 30.48 × 2.413 cm (10 × 12 × 0.95 in) Size: sapi-xs Curveature: multi-curve Cut: sapi Weight: 0.99 kg (2.18 lbs) Dimensions: 18.4 × 29.2 × 2.413 cm (7.24 × 11.5 × 0.95 in) Size: sapi-s Curveature: multi-curve Cut: sapi Weight: 1.22 kg (2.69 lbs) Dimensions: 22.2 × 29.8 × 2.413 cm (8.74 × 11.73 × 0.95 in) Size: sapi-m Curveature: multi-curve Cut: sapi Weight: 1.4 kg (3.09 lbs) Dimensions: 24.1 × 31.8 × 2.413 cm (9.49 × 12.52 × 0.95 in) Size: sapi-l Curveature: multi-curve Cut: sapi Weight: 1.63 kg (3.59 lbs) Dimensions: 26 × 33.7 × 2.413 cm (10.24 × 13.27 × 0.95 in) Size: sapi-xl Curveature: multi-curve Cut: sapi Weight: 1.86 kg (4.1 lbs) Dimensions: 27.9 × 35.6 × 2.413 cm (10.98 × 14.02 × 0.95 in) -
