LWA IV SA06

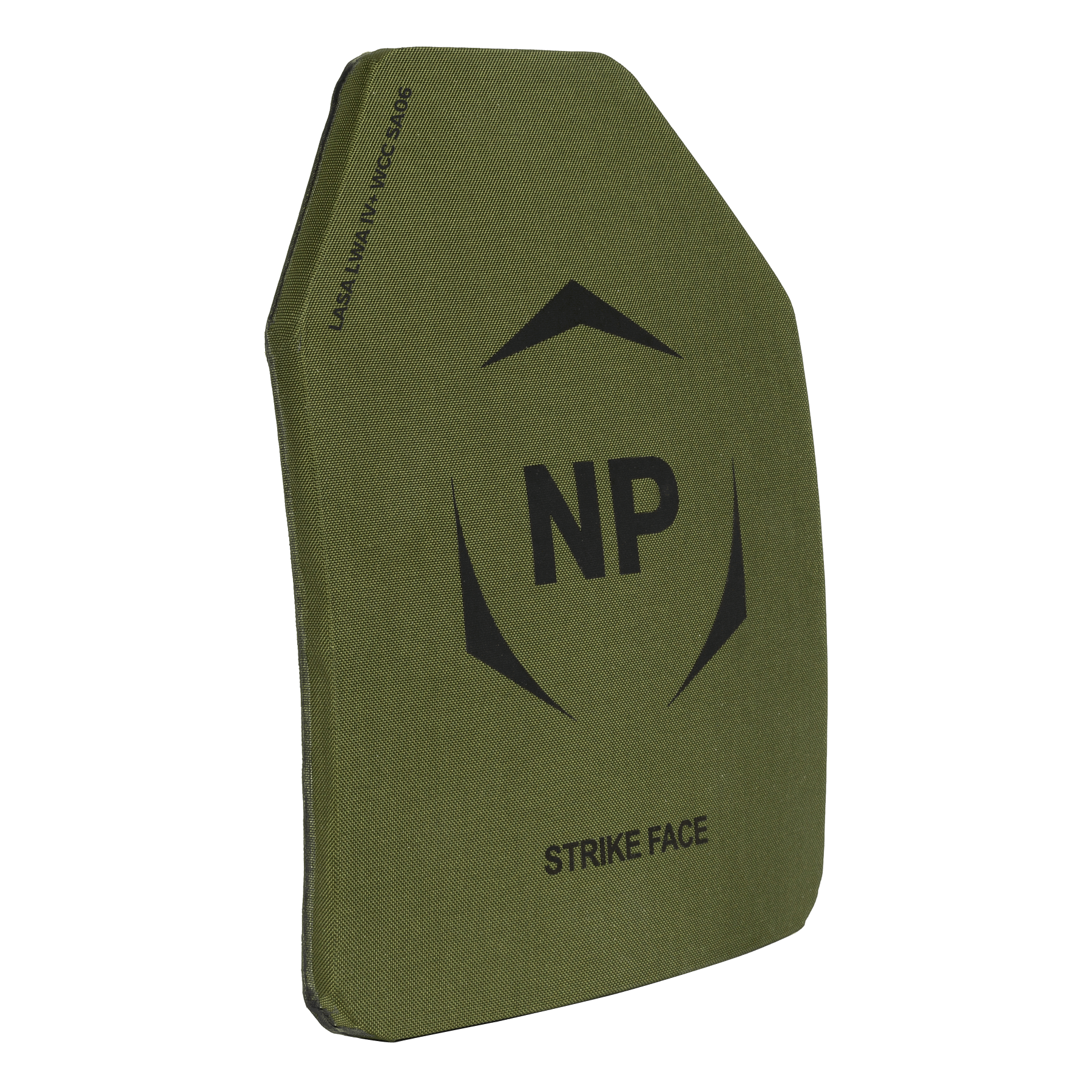

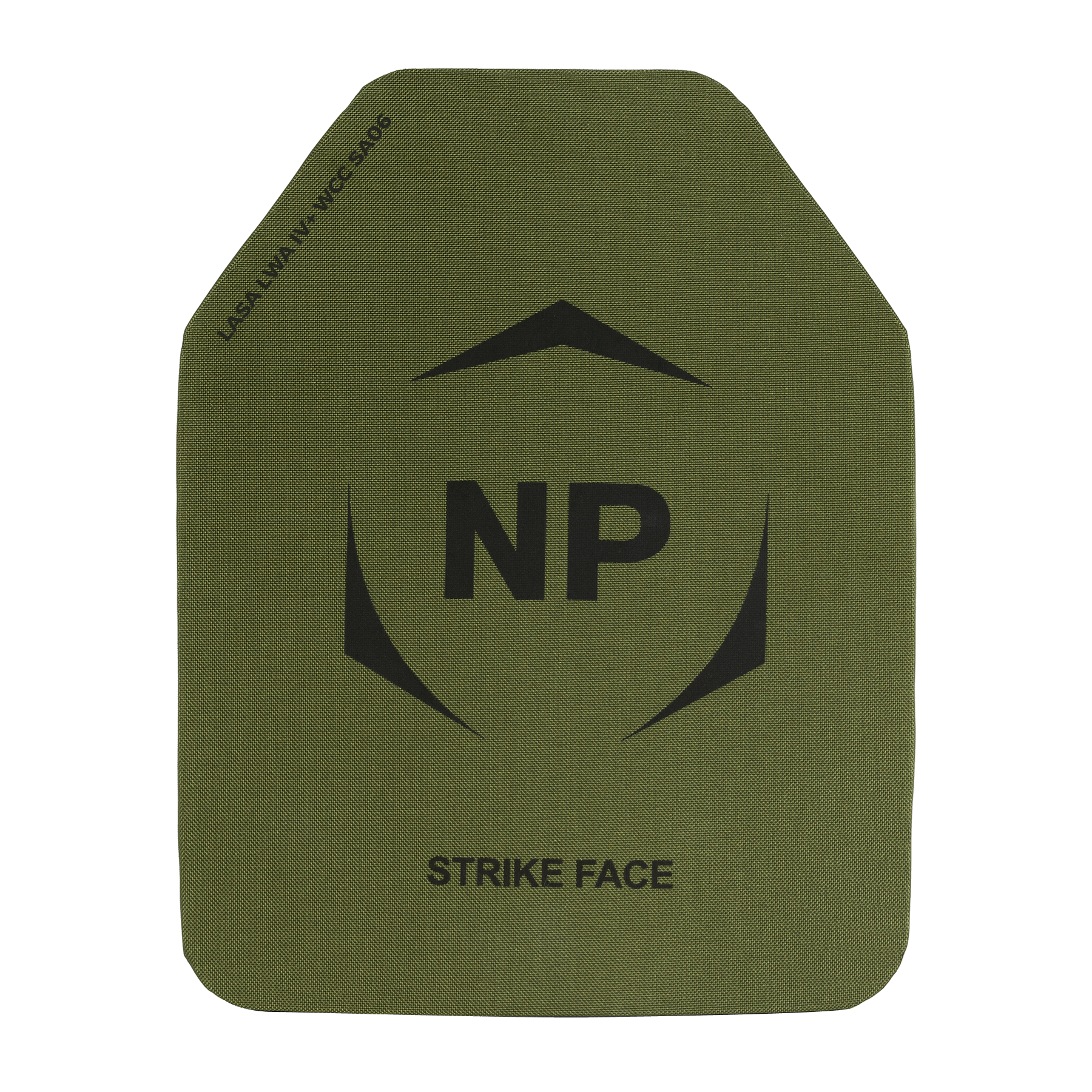

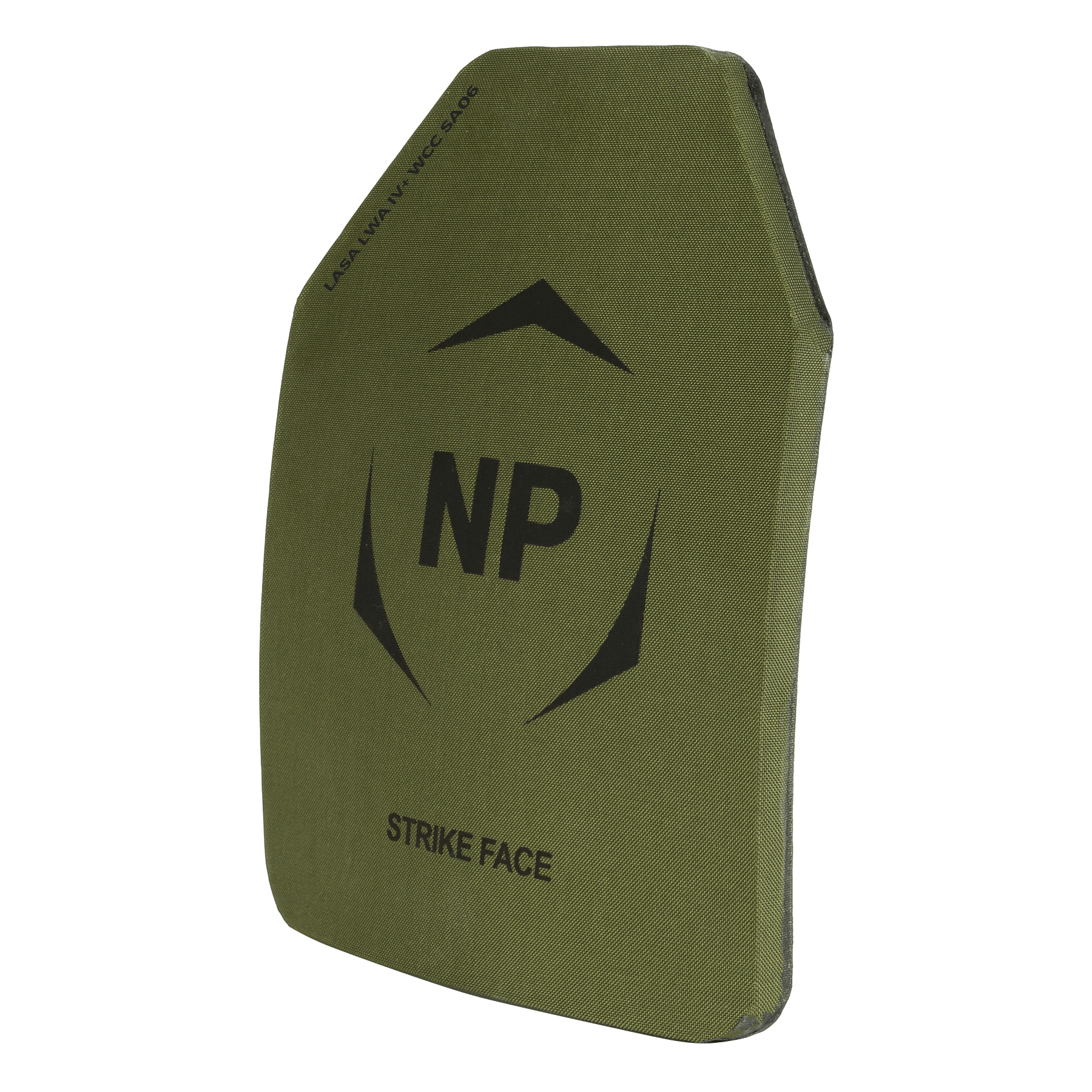

The LASA LWA IV- SA06 body armour plate provides ultra-lightweight multi-hit protection against a range of armour piecing threats, including the 7.62mm BZ API and SS109 round (Green Tip).

Weighing just 2.16kg/4.76lbs for a medium plate, with a thickness of 25mm, the LASA LWA IV- SA06 body armour plate delivers outstanding protection at NIJ 0101.06.

LORICA Equipment limited warrants, for a period of sixty (60) months after the “date of issue” that the Hard Armour Solutions shall be free from defects in material and workmanship provided all products are used and maintained in accordance with NP Aerospace’s Use and Care Manual.

Product Specs

• Product Name LASA LWA IV- SA06
• Application Stand Alone Body Armour
• Testing Standard In accordance with NIJ 0101.06
• Protection Level Special Threats (see below)
• Configuration Stand-Alone
• Thinness 23 mm
• Areal Weight 30.1 kg/m²
• Plate Mass (Medium) 2.16 kg
• Curvature Multi-Curve
• Materials Hybrid Ceramic, UHMWPE, CMS
• Cover Ballistic Nylon
• Sizes SAPI S - L available
• Threats and Special Threats 7.62 x 39mm BZ API*
  5.56 x 45mm SS109*
  7.62 x 39mm PS Ball (Mild Steel Core)*

  *Special Threat Testing conducted in accordance with an abbreviated and modified NIJ Standard 0101.06 and NP Aerospace Testing Protocol.


Size & Weight Chart

Width and length dimensions are ±0.25 in (±6mm).
All weights are ±0.25 lbs (113g).

Size	Curveature	Cut	Weight	Dimensions ( A × B × C )
Size: 6x6	Curveature: multi-curve	Cut: full	Weight: 0.67 kg (1.48 lbs)	Dimensions: 15.2 × 15.2 × 2.3 cm (5.98 × 5.98 × 0.91 in)
Size: sapi-s	Curveature: multi-curve	Cut: shooter	Weight: 1.90 kg (4.19 lbs)	Dimensions: 22.2 × 29.8 × 2.3 cm (8.74 × 11.73 × 0.91 in)
Size: sapi-m	Curveature: multi-curve	Cut: shooter	Weight: 2.16 kg (4.76 lbs)	Dimensions: 24.1 × 31 × 2.3 cm (9.49 × 12.2 × 0.91 in)
Size: sapi-l	Curveature: multi-curve	Cut: shooter	Weight: 2.53 kg (5.58 lbs)	Dimensions: 26.0 × 33.7 × 2.3 cm (10.24 × 13.27 × 0.91 in)
